DxA 5000 FIT WORKFLOW AUTOMATION SYSTEM

Module Dimensions

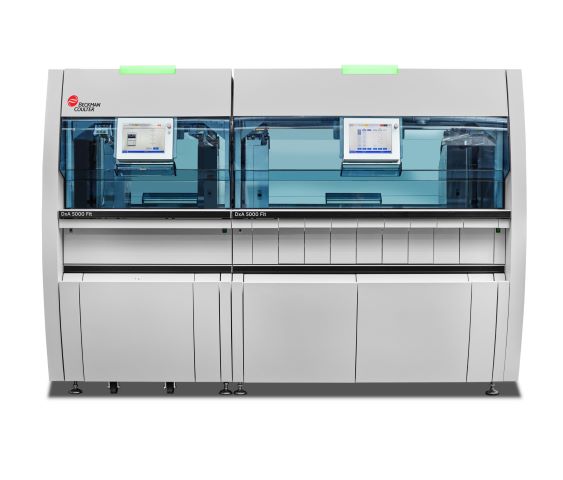

• Input/Output Module: 1,710 mm W x 1,362 mm D x 1,835 mm H; 580 kg, 271 kg/m²
• Single centrifuge: 1,062 mm W x 1,362 mm D x 1,835 mm H; 600 kg, 415 kg/m²
• Rack-Builder Unit (RBU): 1,062 mm W x 1,571 mm D x 1,835 mm H; 480 kg, 288 kg/m²
• Server Cabinet (with monitor): 730 mm W x 800 mm D x 1,050 mm (1,550 mm with monitor) H; 220 kg, 377 kg/m²
• End Caps: 95 mm W x 880 mm D x 1,740 mm H; 23 kg, 275 kg/m²

Track Dimensions

• ASSY, Main, Secondary, Drive, Dual-tran: 1,162 mm W x 290 mm D x 1,003 mm H; 85 kg, 251.9 kg/m²
• ASSY, Main, Primary, Drive, Dual-tran: 1,100 mm W x 290 mm D x 1,003 mm H; 90 kg, 281.8 kg/m²
• ASSY, Main, Drive, Single-tran: 1,015 mm W x 407 mm D x 1,003 mm H; 85 kg, 205.7 kg/m²
• ASSY, Main, Straight, 1,710 mm, Decapper, Input-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²
• ASSY, Main, Straight, 1,710 mm, Recapper, Ambient Output-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.5 kg/m²
• ASSY, Main, Straight, Centrifuge, Dual-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²
• ASSY, Main, Straight, 1,250 mm, Dts-Tran 1,343 mm W x 301 mm D x 1,003 mm H; 80kg, 198.0 kg/m²
• ASSY, Main, Straight, Queue, 1,250 mm-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
• ASSY, Main, Straight, Blank, 1,250 m m-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 75 kg, 192.5 kg/m²
• ASSY, Main, Straight, Blank, 1,250 mm, rbu-tran: 1,344 mm W x 290 mm D x 1,003 mm H; 80 kg, 205 kg/m²
• ASSY, Main, Straight, Blank, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 55 kg, 183.6 kg/m²
• ASSY, Main, Straight, Queue, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 60 kg, 200.3 kg/m²
• ASSY, Main, Straight, Blank, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 35 kg, 167.4 kg/m²
• ASSY, Main, Straight, Crossover, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 40 kg, 191.3 kg/m²
• ASSY, Main, Straight, Queue, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 40 kg, 191.3 kg/m²
• ASSY, Main, Straight, Blank, 313 mm-tran: 405 mm W x 290 mm D x 993 mm H; 20 kg, 170.1 kg/m²
• ASSY, Main, L-tran: 1,100 mm W x 1,100 mm D x 1,003 mm H; 120 kg, 99.1 kg/m²
• ASSY, Main, T-tran: 1,343 mm W x 779 mm D x 1,003 mm H; 120 kg, 114.7 kg/m²
• ASSY, Main, Spur, Rhs, Dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
• ASSY, Main, Spur, Rhs, Dxl, Dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
• ASSY, Main, Spur, Lhs, Dts-tran: 1,722 mm W x 418 mm D x 1,003 mm H; 85 kg, 118.2 kg/m²
• ASSY, Main, Spur, Lhs, Dxi,¬ Dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
• ASSY, Main, Spacer, 938 mm, Spur, Dts-tran: 1,030 mm W x 406 mm D x 1,003 mm H; 55 kg, 131.4 kg/m²
• ASSY, Main, Spur, Dts, Passive-tran: 1,343 mm W x 765 mm D x 1,003 mm H; 120 kg, 116.8 kg/m²
• ASSY, Main, Straight, 1,250 mm, Dtx,¬ Dxi-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
• ASSY, Main, Crossover, 1,250 mm-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
• ASSY, Main, Straight, Crossover, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 60 kg, 200.3 kg/m²
• ASSY, Main, Straight, Centrifuge, Single-tran: 1,157 mm W x 272 mm D x 1,009 mm H; 65 kg, 206.4 kg/m²
• ASSY, Main, Straight, 1,063 mm, Spacer, Aliquot-tran: 1,157 mm W x 290 mm D x 1,009 mm H; 65 kg, 193.5 kg/m²
• ASSY, Main, Straight, 1,710 mm, Output-tran:1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²

General Power Requirements

• VAC: 200–240
• Hz: 50/60
• Peak current: 20 A max

Module Power Requirements

• Input/Output Module: <5 Amp, 1 kW, 3,412 BTU, 860 kCal/hr
• Single Centrifuge: <5 Amp and 1 x 12A, 3.3 kW, 11.26 BTU, 2,840 kCal/hr
• Rack-Builder Unit: <5 Amp, 1 kW, 3,412 BTU, 860 kCal/hr
• Server Cabinet: <12 Amp, 2 kW, 6,824 BTU, 1,720 kCal/hr

Transport Power Requirements

• 1° drive start: <16 Amp, 0.1 kW, 341 BTU, 86 kCal/hr
• 2° drive finish: <16 Amp, 0.1 kW, 341 BTU, 86 kCal/hr
• Other active segments: NA, 0.1 kW, 205 BTU, 52 kCal/hr

Input/output Drawer 6x6 Rack

• Capacity: 36 tubes
• Dimensions: 149 mm L x 149 mm W, 74.4 mm H
• Net weight: 250 g

Input/output Drawer 6x14 Rack

• Capacity: 84 tubes
• Dimensions: 319 mm L x 149 mm W, 74.4 mm H
• Net weight: 570 g

Storage Rack

• Capacity: 105 tubes
• Dimensions: 132 mm L x 380 mm W, 46 mm H
• Net weight: 474 g
