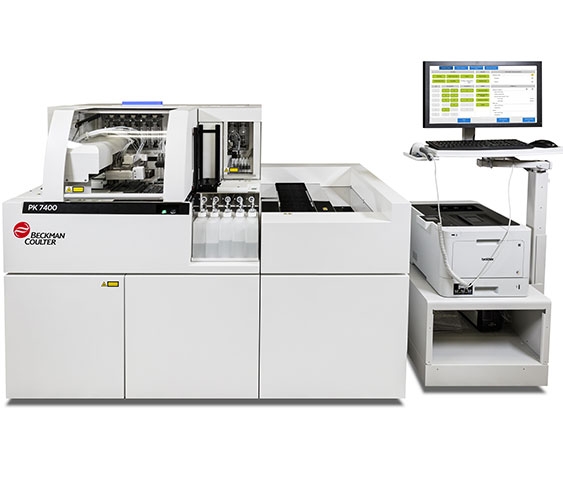

PK7400 Automated Microplate System

Thông tin sản phẩm

Tình trạng: Còn hàng

Thương hiệu: Beckmancoulter

The PK7400 Automated Microplate System delivers the industry’s highest throughput and improves workflow efficiency through fully automated, batch-test functionality. The next evolution in PK innovation, the PK7400 donor testing analyzer, enables you to optimize testing using proven agglutination technology and a comprehensive blood typing menu

Liên hệ

Mô tả

General Characteristics
Analytical method	Agglutination method on terraced microplates
Channels	12
Throughput	300 samples/hour with 5 diluted sample cups
Sample capacity	12 racks or 120 samples; continuous sample-rack loading allowed
Sample tube size	In primary or secondary tubes: diameter: 12‒15 mm; height: 75‒100 mm
Sample	Plasma, serum, red blood cells
Reagent tray	Up to 16 reagents can be loaded; 12 positions for primary reagents (R1); 4 positions for secondary reagents (R2)
Reaction vessel	Terraced microplates
Reaction time	60 minutes
Assays	ABO blood grouping, Rh typing, including weak D testing, red blood cell antigen screening and syphilis qualitative screening^ⱡ
Sample barcode	NW-7, CODE 39, CODE 128, ISBT-CODE 128, 2 of 5 Interleaved and EAN-13
Analyzer dimensions	1,760 mm (W) x 920 mm (D) x 1,380 mm (H) / 69 in (W) x 36 in (D) x 54 in (H)
Console dimensions	Console dimensions 800 mm (W) x 720 mm (D) x 1,450 mm (H) / 32 in (W) x 28 in (D) x 57 in (H)
Weight	750 kg / 1,653 lbs
Electrical Requirements
Electrical consumption	3.0 kVA maximum
Current	15‒30 amp (with UPS)
Circuit	Dedicated and noise-free
Voltage	200/208/220/230/240 VAC (±10%) single phase
Frequency	50/60 Hz (±1 Hz)
Ground requirement	<100 ohms
Location	Power cable length 10 m (30 ft)
Water Requirements
Type	Deionized
Supply	Continuous flow
Resistivity	>0.5 mega ohms
Mechanical filtration	<0.5 µm (glycerol-free) filter at discharge of deionizer
Consumption	50 L/hour max, instantaneous demand 3.5 L/minute
Pressure	0.49 x 10⁵ Pa to 3.92 x 10⁵ Pa (7.1‒58.8 PSI)
Location	Shutoff valve within 10 m (30 ft)
Tubing diameter	12 mm (ID) x 18 mm (OD)
Connection	0.5 in barbed-hose fitting
Drain Requirements
Gravity	Hazardous waste floor drain: maximum height 1.5 m (5 ft); max distance from analyzer: 10 m (30 ft)
Tubing requirements	15 mm (ID) x 22 mm (OD)
Environmental Requirements
Average heat output	7,200 KJ/H (6,824 BTU) max
Ambient temperature	18–28°C (fluctuations during measurement shall be within ± 2°C)
Ambient humidity	20%–80% relative humidity
Noise output	Max 65 dB or less
